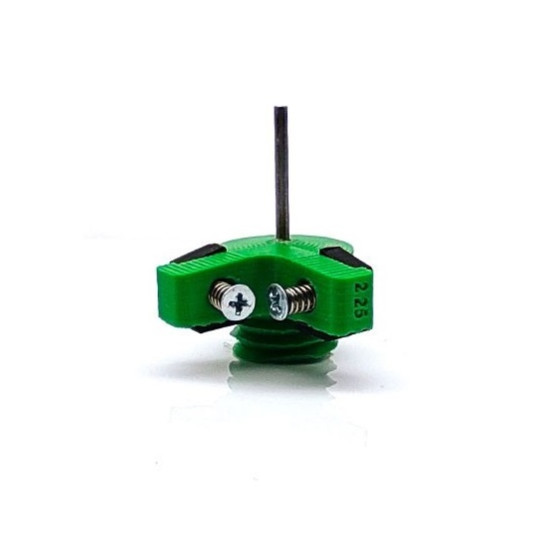

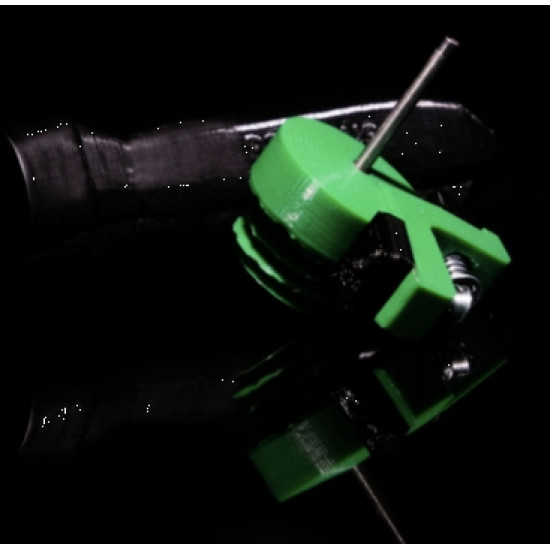

Guide for Winder Evo 2.25mm Resistors – Pegasus Coils is the ideal tool for those who want to shape and wind their own resistors with artisanal precision. Developed by the prestigious Pegasus Coils brand, the Winder Evo was designed to simplify the entire process of manufacturing customized coils.

With a specific rod diameter of 2.25 mm, it is perfect for preparing assemblies both single coils and dual coils for your rebuildable atomizers (RDA, RTA and RDTA). It guarantees perfectly uniform, aligned wraps with the proper tension to maximize flavor and vapor yield.

⚠️ Manual winding tool — does not include metal wires, ready-made resistors, cotton, e-liquid or nicotine. Keep out of reach of children.

Product Details

• Brand: Pegasus Coils
• Model: Winder Evo
• Type: Winding Tool / Jig for Resistance Coils (*Coil Winder*)
• Rod Diameter: 2.25 mm
• Mounting Compatibility: Ideal for Single Coil (individual) and Dual Coil (dual) configurations
• Material: Steel / High-precision and durable metal
• Recommended Use: Manufacturing and shaping wires of Kanthal, Ni80, SS316L, Clapton, Alien, etc.
• Sale: Individual unit

Product Advantages

• Simple and Quick Winding: create customized resistances with a professional finish in seconds.
• Diameter Specific of 2.25mm: ideal measurement to optimize air flow and cotton passage in intermediate-sized decks.
• Total Versatility: excellent for preparing mounts single or dual coil adapted to your vaping style.
• Pegasus Coils Engineering: designed by specialists in crafting high-performance artisanal resistances.

Contents of the Package

• 1 × Guide for Winder Evo 2.25mm Coils – Pegasus Coils

Installation and Use Instructions

1. Pass the metal wire of your choice through the Winder Evo hole/guide.
2. Rotate the upper section to wind the wire around the 2.25 mm shaft until the desired number of turns is reached.
3. Remove the finished coil from the shaft and install the legs into the posts of the deck of your atomizer.
4. Align and position the coil on the deck using the gauge rod before trimming excess wire.

Maintenance and Care

• Clean the jig with a dry cloth after use to remove e-liquid marks or dirt.
• Do not force the tool with wires that are too stiff or out of tolerance to avoid bending the 2.25 mm rod.
• Store in a dry place protected from humidity.

Safety and Recommendations

• Hand winding tool — this article does not contain nicotine or e-liquid.
• Keep out of reach of children and pets.
• Never insert the metal jig into the atomizer while the mod is on or during heating.
• Vaporização exige cuidado e atenção. Produto exclusivo para maiores de 18 anos, não indicado para não fumadores, grávidas ou pessoas com problemas de saúde. Para uso seguro e responsável, consulte o FAQ da Contraste Vaping®.
• Caso note inchaço ou superaquecimento da bateria, gosto estranho, vazamentos ou qualquer outro problema, pare imediatamente o uso e entre em contato conosco.
